Redirect input to another BufferedTransformation without owning it. More...

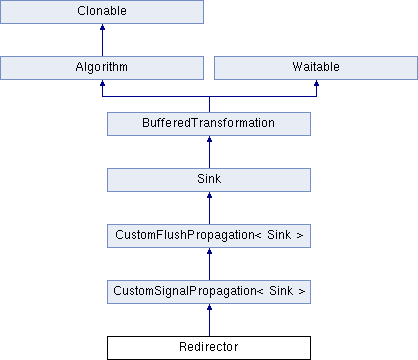

Inheritance diagram for Redirector:

Public Types
enum	Behavior { DATA_ONLY = 0x00, PASS_SIGNALS = 0x01, PASS_WAIT_OBJECTS = 0x02, PASS_EVERYTHING = PASS_SIGNALS \| PASS_WAIT_OBJECTS }
	Controls signal propagation behavior. More...

Public Member Functions
	Redirector ()
	Construct a Redirector.

	Redirector (BufferedTransformation &target, Behavior behavior=PASS_EVERYTHING)
	Construct a Redirector. More...

void	Redirect (BufferedTransformation &target)
	Redirect input to another BufferedTransformation. More...

void	StopRedirection ()
	Stop redirecting input.

Behavior	GetBehavior ()

void	SetBehavior (Behavior behavior)

bool	GetPassSignals () const

void	SetPassSignals (bool pass)

bool	GetPassWaitObjects () const

void	SetPassWaitObjects (bool pass)

bool	CanModifyInput () const
	Determines whether input can be modified by the callee. More...

void	Initialize (const NameValuePairs &parameters, int propagation)
	Initialize or reinitialize this object, with signal propagation. More...

byte *	CreatePutSpace (size_t &size)
	Request space which can be written into by the caller. More...

size_t	Put2 (const byte *inString, size_t length, int messageEnd, bool blocking)
	Input multiple bytes for processing. More...

bool	Flush (bool hardFlush, int propagation=-1, bool blocking=true)
	Flush buffered input and/or output, with signal propagation. More...

bool	MessageSeriesEnd (int propagation=-1, bool blocking=true)
	Marks the end of a series of messages, with signal propagation. More...

byte *	ChannelCreatePutSpace (const std::string &channel, size_t &size)
	Request space which can be written into by the caller. More...

size_t	ChannelPut2 (const std::string &channel, const byte *begin, size_t length, int messageEnd, bool blocking)
	Input multiple bytes for processing on a channel. More...

size_t	ChannelPutModifiable2 (const std::string &channel, byte *begin, size_t length, int messageEnd, bool blocking)
	Input multiple bytes that may be modified by callee on a channel. More...

bool	ChannelFlush (const std::string &channel, bool completeFlush, int propagation=-1, bool blocking=true)
	Flush buffered input and/or output on a channel. More...

bool	ChannelMessageSeriesEnd (const std::string &channel, int propagation=-1, bool blocking=true)
	Marks the end of a series of messages on a channel. More...

unsigned int	GetMaxWaitObjectCount () const
	Retrieves the maximum number of waitable objects.

void	GetWaitObjects (WaitObjectContainer &container, CallStack const &callStack)
	Retrieves waitable objects. More...

SIGNALS
Public Member Functions inherited from Sink
size_t	TransferTo2 (BufferedTransformation &target, lword &transferBytes, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
	Transfer bytes from this object to another BufferedTransformation. More...

size_t	CopyRangeTo2 (BufferedTransformation &target, lword &begin, lword end=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true) const
	Copy bytes from this object to another BufferedTransformation. More...

Public Member Functions inherited from BufferedTransformation
	BufferedTransformation ()
	Construct a BufferedTransformation.

BufferedTransformation &	Ref ()
	Provides a reference to this object. More...

size_t	Put (byte inByte, bool blocking=true)
	Input a byte for processing. More...

size_t	Put (const byte *inString, size_t length, bool blocking=true)
	Input a byte buffer for processing. More...

size_t	PutWord16 (word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
	Input a 16-bit word for processing. More...

size_t	PutWord32 (word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
	Input a 32-bit word for processing. More...

size_t	PutModifiable (byte *inString, size_t length, bool blocking=true)
	Input multiple bytes that may be modified by callee. More...

bool	MessageEnd (int propagation=-1, bool blocking=true)
	Signals the end of messages to the object. More...

size_t	PutMessageEnd (const byte *inString, size_t length, int propagation=-1, bool blocking=true)
	Input multiple bytes for processing and signal the end of a message. More...

virtual size_t	PutModifiable2 (byte *inString, size_t length, int messageEnd, bool blocking)
	Input multiple bytes that may be modified by callee. More...

virtual bool	IsolatedMessageSeriesEnd (bool blocking)
	Marks the end of a series of messages, without signal propagation. More...

virtual void	SetAutoSignalPropagation (int propagation)
	Set propagation of automatically generated and transferred signals. More...

virtual int	GetAutoSignalPropagation () const
	Retrieve automatic signal propagation value. More...

virtual lword	MaxRetrievable () const
	Provides the number of bytes ready for retrieval. More...

virtual bool	AnyRetrievable () const
	Determines whether bytes are ready for retrieval. More...

virtual size_t	Get (byte &outByte)
	Retrieve a 8-bit byte. More...

virtual size_t	Get (byte *outString, size_t getMax)
	Retrieve a block of bytes. More...

virtual size_t	Peek (byte &outByte) const
	Peek a 8-bit byte. More...

virtual size_t	Peek (byte *outString, size_t peekMax) const
	Peek a block of bytes. More...

size_t	GetWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER)
	Retrieve a 16-bit word. More...

size_t	GetWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER)
	Retrieve a 32-bit word. More...

size_t	PeekWord16 (word16 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
	Peek a 16-bit word. More...

size_t	PeekWord32 (word32 &value, ByteOrder order=BIG_ENDIAN_ORDER) const
	Peek a 32-bit word. More...

lword	TransferTo (BufferedTransformation &target, lword transferMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL)
	move transferMax bytes of the buffered output to target as input More...

virtual lword	Skip (lword skipMax=LWORD_MAX)
	Discard skipMax bytes from the output buffer. More...

lword	CopyTo (BufferedTransformation &target, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
	copy copyMax bytes of the buffered output to target as input More...

lword	CopyRangeTo (BufferedTransformation &target, lword position, lword copyMax=LWORD_MAX, const std::string &channel=DEFAULT_CHANNEL) const
	Copy bytes from this object using an index to another BufferedTransformation. More...

virtual lword	TotalBytesRetrievable () const
	Provides the number of bytes ready for retrieval. More...

virtual unsigned int	NumberOfMessages () const
	Provides the number of meesages processed by this object. More...

virtual bool	AnyMessages () const
	Determines if any messages are available for retrieval. More...

virtual bool	GetNextMessage ()
	Start retrieving the next message. More...

virtual unsigned int	SkipMessages (unsigned int count=UINT_MAX)
	Skip a number of meessages. More...

unsigned int	TransferMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL)
	Transfer messages from this object to another BufferedTransformation. More...

unsigned int	CopyMessagesTo (BufferedTransformation &target, unsigned int count=UINT_MAX, const std::string &channel=DEFAULT_CHANNEL) const
	Copy messages from this object to another BufferedTransformation. More...

virtual void	SkipAll ()
	Skip all messages in the series.

void	TransferAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL)
	Transfer all bytes from this object to another BufferedTransformation. More...

void	CopyAllTo (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL) const
	Copy messages from this object to another BufferedTransformation. More...

virtual bool	GetNextMessageSeries ()
	Retrieve the next message in a series. More...

virtual unsigned int	NumberOfMessagesInThisSeries () const
	Provides the number of messages in a series. More...

virtual unsigned int	NumberOfMessageSeries () const
	Provides the number of messages in a series. More...

size_t	TransferMessagesTo2 (BufferedTransformation &target, unsigned int &messageCount, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
	Transfer messages from this object to another BufferedTransformation. More...

size_t	TransferAllTo2 (BufferedTransformation &target, const std::string &channel=DEFAULT_CHANNEL, bool blocking=true)
	Transfer all bytes from this object to another BufferedTransformation. More...

size_t	ChannelPut (const std::string &channel, byte inByte, bool blocking=true)
	Input a byte for processing on a channel. More...

size_t	ChannelPut (const std::string &channel, const byte *inString, size_t length, bool blocking=true)
	Input a byte buffer for processing on a channel. More...

size_t	ChannelPutModifiable (const std::string &channel, byte *inString, size_t length, bool blocking=true)
	Input multiple bytes that may be modified by callee on a channel. More...

size_t	ChannelPutWord16 (const std::string &channel, word16 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
	Input a 16-bit word for processing on a channel. More...

size_t	ChannelPutWord32 (const std::string &channel, word32 value, ByteOrder order=BIG_ENDIAN_ORDER, bool blocking=true)
	Input a 32-bit word for processing on a channel. More...

bool	ChannelMessageEnd (const std::string &channel, int propagation=-1, bool blocking=true)
	Signal the end of a message. More...

size_t	ChannelPutMessageEnd (const std::string &channel, const byte *inString, size_t length, int propagation=-1, bool blocking=true)
	Input multiple bytes for processing and signal the end of a message. More...

virtual void	SetRetrievalChannel (const std::string &channel)
	Sets the default retrieval channel. More...

virtual bool	Attachable ()
	Determines whether the object allows attachment. More...

virtual BufferedTransformation *	AttachedTransformation ()
	Returns the object immediately attached to this object. More...

virtual const BufferedTransformation *	AttachedTransformation () const
	Returns the object immediately attached to this object. More...

virtual void	Detach (BufferedTransformation *newAttachment=NULL)
	Delete the current attachment chain and attach a new one. More...

virtual void	Attach (BufferedTransformation *newAttachment)
	Add newAttachment to the end of attachment chain. More...

Public Member Functions inherited from Algorithm
	Algorithm (bool checkSelfTestStatus=true)
	Interface for all crypto algorithms. More...

virtual std::string	AlgorithmName () const
	Provides the name of this algorithm. More...

virtual std::string	AlgorithmProvider () const
	Retrieve the provider of this algorithm. More...

Public Member Functions inherited from Clonable
virtual Clonable *	Clone () const
	Copies this object. More...

Public Member Functions inherited from Waitable
bool	Wait (unsigned long milliseconds, CallStack const &callStack)
	Wait on this object. More...

Detailed Description

Redirect input to another BufferedTransformation without owning it.

Since: Crypto++ 4.0

Definition at line 833 of file filters.h.

Member Enumeration Documentation

◆ Behavior

enum Redirector::Behavior

Controls signal propagation behavior.

Enumerator
DATA_ONLY	Pass data only.
PASS_SIGNALS	Pass signals.
PASS_WAIT_OBJECTS	Pass wait events.
PASS_EVERYTHING	Pass everything. PASS_EVERYTHING is default

Definition at line 838 of file filters.h.

Constructor & Destructor Documentation

◆ Redirector()

Redirector::Redirector	(	BufferedTransformation &	target,
		Behavior	behavior = `PASS_EVERYTHING`
	)

inline

Construct a Redirector.

Parameters

target	the destination BufferedTransformation
behavior	Behavior "flags" specifying signal propagation

Definition at line 859 of file filters.h.

Member Function Documentation

◆ Redirect()

void Redirector::Redirect ( BufferedTransformation & target )

inline

Redirect input to another BufferedTransformation.

Parameters

target the destination BufferedTransformation

Definition at line 864 of file filters.h.

◆ CanModifyInput()

bool Redirector::CanModifyInput ( ) const

inlinevirtual

Determines whether input can be modified by the callee.

Returns: true if input can be modified, false otherwise

The base class implementation returns false.

Reimplemented from BufferedTransformation.

Definition at line 875 of file filters.h.

◆ Initialize()

void Redirector::Initialize	(	const NameValuePairs &	parameters,
		int	propagation
	)

virtual

Initialize or reinitialize this object, with signal propagation.

Parameters

parameters	a set of NameValuePairs to initialize or reinitialize this object
propagation	the number of attached transformations the Initialize() signal should be passed

Initialize() is used to initialize or reinitialize an object using a variable number of arbitrarily typed arguments. The function avoids the need for multiple constructors providing all possible combintations of configurable parameters.

propagation count includes this object. Setting propagation to 1 means this object only. Setting propagation to -1 means unlimited propagation.

Implements CustomSignalPropagation< Sink >.

Definition at line 474 of file filters.cpp.

◆ CreatePutSpace()

byte* Redirector::CreatePutSpace ( size_t & size )

inlinevirtual

Request space which can be written into by the caller.

Parameters

size	the requested size of the buffer

Returns: byte pointer to the space to input data

The purpose of this method is to help avoid extra memory allocations.

size is an IN and OUT parameter and used as a hint. When the call is made, size is the requested size of the buffer. When the call returns, size is the size of the array returned to the caller.

The base class implementation sets size to 0 and returns NULL.

Note: Some objects, like ArraySink, cannot create a space because its fixed. In the case of an ArraySink, the pointer to the array is returned and the size is remaining size.

Reimplemented from BufferedTransformation.

Definition at line 879 of file filters.h.

◆ Put2()

size_t Redirector::Put2	(	const byte *	inString,
		size_t	length,
		int	messageEnd,
		bool	blocking
	)

inlinevirtual

Input multiple bytes for processing.

Parameters

inString	the byte buffer to process
length	the size of the string, in bytes
messageEnd	means how many filters to signal MessageEnd() to, including this one
blocking	specifies whether the object should block when processing input

Returns: the number of bytes that remain in the block (i.e., bytes not processed). 0 indicates all bytes were processed.

Derived classes must implement Put2().

Implements BufferedTransformation.

Definition at line 889 of file filters.h.

◆ Flush()

bool Redirector::Flush	(	bool	hardFlush,
		int	propagation = `-1`,
		bool	blocking = `true`
	)

inlinevirtual

Flush buffered input and/or output, with signal propagation.

Parameters

hardFlush	is used to indicate whether all data should be flushed
propagation	the number of attached transformations the Flush() signal should be passed
blocking	specifies whether the object should block when processing input

propagation count includes this object. Setting propagation to 1 means this object only. Setting propagation to -1 means unlimited propagation.

Note: Hard flushes must be used with care. It means try to process and output everything, even if there may not be enough data to complete the action. For example, hard flushing a HexDecoder would cause an error if you do it after inputing an odd number of hex encoded characters.; For some types of filters, like ZlibDecompressor, hard flushes can only be done at "synchronization points". These synchronization points are positions in the data stream that are created by hard flushes on the corresponding reverse filters, in this example ZlibCompressor. This is useful when zlib compressed data is moved across a network in packets and compression state is preserved across packets, as in the SSH2 protocol.

Implements CustomFlushPropagation< Sink >.

Definition at line 891 of file filters.h.

◆ MessageSeriesEnd()

bool Redirector::MessageSeriesEnd	(	int	propagation = `-1`,
		bool	blocking = `true`
	)

inlinevirtual

Marks the end of a series of messages, with signal propagation.

Parameters

propagation	the number of attached transformations the MessageSeriesEnd() signal should be passed
blocking	specifies whether the object should block when processing input

Each object that receives the signal will perform its processing, decrement propagation, and then pass the signal on to attached transformations if the value is not 0.

propagation count includes this object. Setting propagation to 1 means this object only. Setting propagation to -1 means unlimited propagation.

Note: There should be a MessageEnd() immediately before MessageSeriesEnd().

Reimplemented from BufferedTransformation.

Definition at line 893 of file filters.h.

◆ ChannelCreatePutSpace()

byte* Redirector::ChannelCreatePutSpace	(	const std::string &	channel,
		size_t &	size
	)

inlinevirtual

Request space which can be written into by the caller.

Parameters

channel	the channel to process the data
size	the requested size of the buffer

Returns: a pointer to a memory block with length size

The purpose of this method is to help avoid extra memory allocations.

size is an IN and OUT parameter and used as a hint. When the call is made, size is the requested size of the buffer. When the call returns, size is the size of the array returned to the caller.

The base class implementation sets size to 0 and returns NULL.

Note: Some objects, like ArraySink(), cannot create a space because its fixed. In the case of an ArraySink(), the pointer to the array is returned and the size is remaining size.

Reimplemented from BufferedTransformation.

Definition at line 896 of file filters.h.

◆ ChannelPut2()

size_t Redirector::ChannelPut2	(	const std::string &	channel,
		const byte *	inString,
		size_t	length,
		int	messageEnd,
		bool	blocking
	)

inlinevirtual

Input multiple bytes for processing on a channel.

Parameters

channel	the channel to process the data.
inString	the byte buffer to process.
length	the size of the string, in bytes.
messageEnd	means how many filters to signal MessageEnd() to, including this one.
blocking	specifies whether the object should block when processing input.

Returns: the number of bytes that remain in the block (i.e., bytes not processed)

Reimplemented from BufferedTransformation.

Definition at line 906 of file filters.h.

◆ ChannelPutModifiable2()

size_t Redirector::ChannelPutModifiable2	(	const std::string &	channel,
		byte *	inString,
		size_t	length,
		int	messageEnd,
		bool	blocking
	)

inlinevirtual

Input multiple bytes that may be modified by callee on a channel.

Parameters

channel	the channel to process the data
inString	the byte buffer to process
length	the size of the string, in bytes
messageEnd	means how many filters to signal MessageEnd() to, including this one
blocking	specifies whether the object should block when processing input

Returns: the number of bytes that remain in the block (i.e., bytes not processed)

Reimplemented from BufferedTransformation.

Definition at line 908 of file filters.h.

◆ ChannelFlush()

bool Redirector::ChannelFlush	(	const std::string &	channel,
		bool	hardFlush,
		int	propagation = `-1`,
		bool	blocking = `true`
	)

inlinevirtual

Flush buffered input and/or output on a channel.

Parameters

channel	the channel to flush the data
hardFlush	is used to indicate whether all data should be flushed
propagation	the number of attached transformations the ChannelFlush() signal should be passed
blocking	specifies whether the object should block when processing input

Returns: true of the Flush was successful

propagation count includes this object. Setting propagation to 1 means this object only. Setting propagation to -1 means unlimited propagation.

Reimplemented from BufferedTransformation.

Definition at line 910 of file filters.h.

◆ ChannelMessageSeriesEnd()

bool Redirector::ChannelMessageSeriesEnd	(	const std::string &	channel,
		int	propagation = `-1`,
		bool	blocking = `true`
	)

inlinevirtual

Marks the end of a series of messages on a channel.

Parameters

channel	the channel to signal the end of a series of messages
propagation	the number of attached transformations the ChannelMessageSeriesEnd() signal should be passed
blocking	specifies whether the object should block when processing input

Each object that receives the signal will perform its processing, decrement propagation, and then pass the signal on to attached transformations if the value is not 0.

propagation count includes this object. Setting propagation to 1 means this object only. Setting propagation to -1 means unlimited propagation.

Note: There should be a MessageEnd() immediately before MessageSeriesEnd().

Reimplemented from BufferedTransformation.

Definition at line 912 of file filters.h.

◆ GetWaitObjects()

void Redirector::GetWaitObjects	(	WaitObjectContainer &	container,
		CallStack const &	callStack
	)

inlinevirtual

Retrieves waitable objects.

Parameters

container	the wait container to receive the references to the objects
callStack	CallStack() object used to select waitable objects

GetWaitObjects is usually called in one of two ways. First, it can be called like something.GetWaitObjects(c, CallStack("my func after X", 0));. Second, if in an outer GetWaitObjects() method that itself takes a callStack parameter, it can be called like innerThing.GetWaitObjects(c, CallStack("MyClass::GetWaitObjects at X", &callStack));.

Reimplemented from BufferedTransformation.

Definition at line 917 of file filters.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

◆ Behavior

Constructor & Destructor Documentation

◆ Redirector()

Member Function Documentation

◆ Redirect()

◆ CanModifyInput()

◆ Initialize()

◆ CreatePutSpace()

◆ Put2()

◆ Flush()

◆ MessageSeriesEnd()

◆ ChannelCreatePutSpace()

◆ ChannelPut2()

◆ ChannelPutModifiable2()

◆ ChannelFlush()

◆ ChannelMessageSeriesEnd()

◆ GetWaitObjects()
