HAVAL5 Class Reference

#include <haval.h>

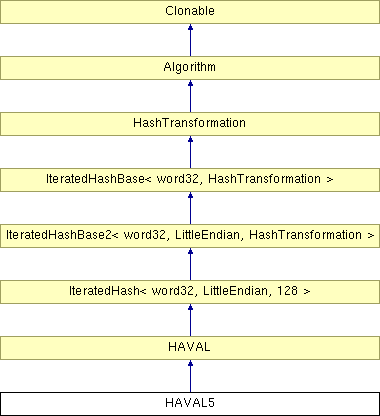

Inheritance diagram for HAVAL5:

List of all members.

Detailed Description

HAVAL with 5 passes

Definition at line 51 of file haval.h.

Public Types

enum { DIGESTSIZE = 32, HAVAL_VERSION = 1 }

typedef LittleEndian ByteOrderClass

typedef IteratedHashBase<
word32, HashTransformation
>::HashWordType HashWordType

Public Member Functions

HAVAL5 (unsigned int digestSize=DIGESTSIZE)

void TruncatedFinal (byte *hash, unsigned int size)

truncated version of Final()

unsigned int DigestSize () const

size of the hash returned by Final()

std::string AlgorithmName () const

returns name of this algorithm, not universally implemented yet

unsigned int BlockSize () const

block size of underlying compression function, or 0 if not block based

unsigned int OptimalBlockSize () const

input to Update() should have length a multiple of this for optimal speed

unsigned int OptimalDataAlignment () const

returns how input should be aligned for optimal performance

void Update (const byte *input, unsigned int length)

process more input

byte * CreateUpdateSpace (unsigned int &size)

request space to write input into

void Restart ()

discard the current state, and restart with a new message

virtual void Final (byte *digest)

compute hash for current message, then restart for a new message

virtual void CalculateDigest (byte *digest, const byte *input, unsigned int length)

use this if your input is in one piece and you don't want to call Update() and Final() separately

virtual bool Verify (const byte *digest)

verify that digest is a valid digest for the current message, then reinitialize the object

virtual bool VerifyDigest (const byte *digest, const byte *input, unsigned int length)

use this if your input is in one piece and you don't want to call Update() and Verify() separately

virtual void CalculateTruncatedDigest (byte *digest, unsigned int digestSize, const byte *input, unsigned int length)

truncated version of CalculateDigest()

virtual bool TruncatedVerify (const byte *digest, unsigned int digestLength)

truncated version of Verify()

virtual bool VerifyTruncatedDigest (const byte *digest, unsigned int digestLength, const byte *input, unsigned int length)

truncated version of VerifyDigest()

virtual Clonable * Clone () const

this is not implemented by most classes yet

Static Public Member Functions

void Transform (word32 *buf, const word32 *in)

const char * StaticAlgorithmName ()

void CorrectEndianess (HashWordType *out, const HashWordType *in, unsigned int byteCount)

Static Public Attributes

CompileAssert<((BLOCKSIZE
&(BLOCKSIZE-1))==0) cryptopp_assert___LINE__ )

Protected Member Functions

void Init ()

void Tailor (unsigned int FPTLEN)

void HashEndianCorrectedBlock (const word32 *in)

virtual void HashEndianCorrectedBlock (const HashWordType *data)=0

void HashBlock (const HashWordType *input)

virtual void HashBlock (const word32 *input)=0

void SetBlockSize (unsigned int blockSize)

void SetStateSize (unsigned int stateSize)

word32 GetBitCountHi () const

word32 GetBitCountLo () const

virtual unsigned int HashMultipleBlocks (const word32 *input, unsigned int length)

void PadLastBlock (unsigned int lastBlockSize, byte padFirst=0x80)

void ThrowIfInvalidTruncatedSize (unsigned int size) const

Protected Attributes

const unsigned int digestSize

const unsigned int pass

SecBlock< word32 > m_data

SecBlock< word32 > m_digest

Static Protected Attributes

const unsigned int wi2 [32] = { 5,14,26,18,11,28, 7,16, 0,23,20,22, 1,10, 4, 8,30, 3,21, 9,17,24,29, 6,19,12,15,13, 2,25,31,27}

const unsigned int wi3 [32] = {19, 9, 4,20,28,17, 8,22,29,14,25,12,24,30,16,26,31,15, 7, 3, 1, 0,18,27,13, 6,21,10,23,11, 5, 2}

const unsigned int wi4 [32] = {24, 4, 0,14, 2, 7,28,23,26, 6,30,20,18,25,19, 3,22,11,31,21, 8,27,12, 9, 1,29, 5,15,17,10,16,13}

const unsigned int wi5 [32] = {27, 3,21,26,17,11,20,29,19, 0,12, 7,13, 8,31,10, 5, 9,14,30,18, 6,28,24, 2,23,16,22, 4, 1,25,15}

const word32 mc2 [32]

const word32 mc3 [32]

const word32 mc4 [32]

const word32 mc5 [32]

Member Function Documentation

virtual void HashTransformation::Final ( byte * digest ) [inline, virtual, inherited]

compute hash for current message, then restart for a new message

Precondition:
size of digest == DigestSize().
Definition at line 532 of file cryptlib.h.
Referenced by PKCS5_PBKDF2_HMAC< T >::DeriveKey(), HashFilter::Put2(), and HMAC_Base::TruncatedFinal().

virtual bool HashTransformation::Verify ( const byte * digest ) [inline, virtual, inherited]

verify that digest is a valid digest for the current message, then reinitialize the object
Default implementation is to call Final() and do a bitwise comparison between its output and digest. Definition at line 558 of file cryptlib.h.

Member Data Documentation

const word32 HAVAL::mc2 [static, protected, inherited]

Initial value:
{ 0x452821E6, 0x38D01377, 0xBE5466CF, 0x34E90C6C, 0xC0AC29B7, 0xC97C50DD, 0x3F84D5B5, 0xB5470917 , 0x9216D5D9, 0x8979FB1B, 0xD1310BA6, 0x98DFB5AC, 0x2FFD72DB, 0xD01ADFB7, 0xB8E1AFED, 0x6A267E96 , 0xBA7C9045, 0xF12C7F99, 0x24A19947, 0xB3916CF7, 0x0801F2E2, 0x858EFC16, 0x636920D8, 0x71574E69 , 0xA458FEA3, 0xF4933D7E, 0x0D95748F, 0x728EB658, 0x718BCD58, 0x82154AEE, 0x7B54A41D, 0xC25A59B5}
Definition at line 213 of file haval.cpp.

const word32 HAVAL::mc3 [static, protected, inherited]

Initial value:
{ 0x9C30D539,0x2AF26013,0xC5D1B023,0x286085F0,0xCA417918,0xB8DB38EF,0x8E79DCB0,0x603A180E, 0x6C9E0E8B,0xB01E8A3E,0xD71577C1,0xBD314B27,0x78AF2FDA,0x55605C60,0xE65525F3,0xAA55AB94, 0x57489862,0x63E81440,0x55CA396A,0x2AAB10B6,0xB4CC5C34,0x1141E8CE,0xA15486AF,0x7C72E993, 0xB3EE1411,0x636FBC2A,0x2BA9C55D,0x741831F6,0xCE5C3E16,0x9B87931E,0xAFD6BA33,0x6C24CF5C}
Definition at line 219 of file haval.cpp.

const word32 HAVAL::mc4 [static, protected, inherited]

Initial value:
{ 0x7A325381,0x28958677,0x3B8F4898,0x6B4BB9AF,0xC4BFE81B,0x66282193,0x61D809CC,0xFB21A991, 0x487CAC60,0x5DEC8032,0xEF845D5D,0xE98575B1,0xDC262302,0xEB651B88,0x23893E81,0xD396ACC5, 0x0F6D6FF3,0x83F44239,0x2E0B4482,0xA4842004,0x69C8F04A,0x9E1F9B5E,0x21C66842,0xF6E96C9A, 0x670C9C61,0xABD388F0,0x6A51A0D2,0xD8542F68,0x960FA728,0xAB5133A3,0x6EEF0B6C,0x137A3BE4}
Definition at line 225 of file haval.cpp.

const word32 HAVAL::mc5 [static, protected, inherited]

Initial value:
{ 0xBA3BF050,0x7EFB2A98,0xA1F1651D,0x39AF0176,0x66CA593E,0x82430E88,0x8CEE8619,0x456F9FB4, 0x7D84A5C3,0x3B8B5EBE,0xE06F75D8,0x85C12073,0x401A449F,0x56C16AA6,0x4ED3AA62,0x363F7706, 0x1BFEDF72,0x429B023D,0x37D0D724,0xD00A1248,0xDB0FEAD3,0x49F1C09B,0x075372C9,0x80991B7B, 0x25D479D8,0xF6E8DEF7,0xE3FE501A,0xB6794C3B,0x976CE0BD,0x04C006BA,0xC1A94FB6,0x409F60C4}
Definition at line 231 of file haval.cpp.

The documentation for this class was generated from the following files:

Generated on Wed Jul 21 19:15:53 2004 for Crypto++ by

1.3.7-20040704
